Press Filters

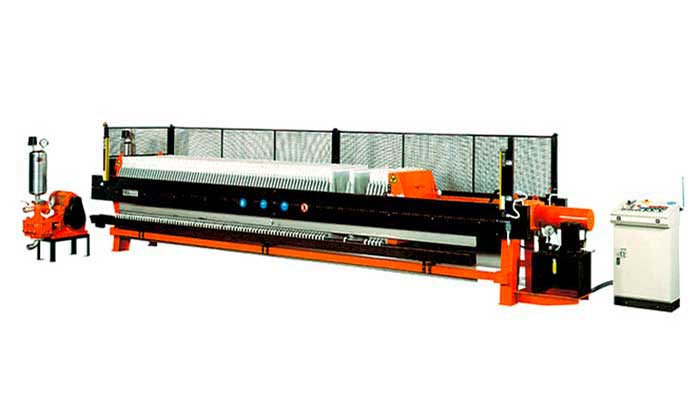

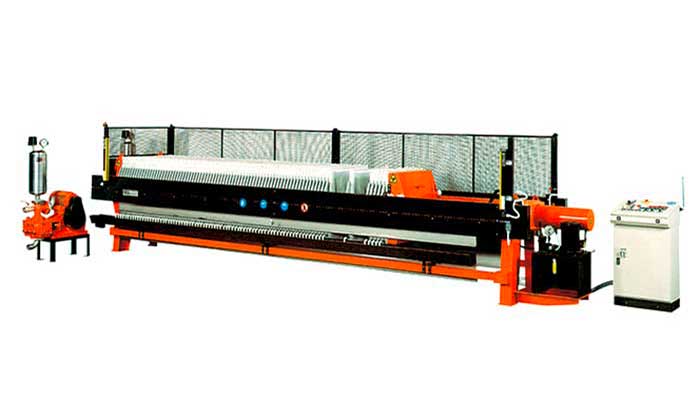

Semi-Automatic F800A

The F800A filter press with automated "one at a time" movement of the plates supervised by the operator, is made up of the following main groups:

  • Find out more details

    • Electro-mechanical automation for moving the filter plates one at a time
    • Electro-welded load-bearing frame in carbon steel with stainless steel cladding, surface treated with a sandblasting cycle, grey anti-rust primer, two coats of special epoxy or polyurethane paint
    • Motorized hydraulic control unit for closing and opening the filter, applied to the machine frame
    • Sludge feeding group generally composed of a single-cylinder S75 piston pump or a twin-cylinder piston pump mod. GS 80/2P, to ensure constant filter filling and a maximum operating pressure of 15 bar.
    • Main control panel with PLC HMI panel and built-in end-of-filter signal device.
    • Side protection panels in anti-splash polycarbonate and operator protection with photoelectric barriers.
    • 810x810 mm filter plates made of PPHD polypropylene.
    • Series of polypropylene filter cloths.
    • Bunker cover or drip-tray drip-collecting doors.
    • High-pressure cloth washing system with up-and-down washer.
    • Membrane plate squeezing system with air or water.

  • Accessories on request

    • Self-tipping container for collecting cakes
    • Metal raising structure compliant with ENPI standards
    • Conveyor belts or stainless steel screws for evacuating exhausted cakes
    • Additional lateral photoelectric barriers for operator protection
    • Sludge pump control inverter with electronic transducer

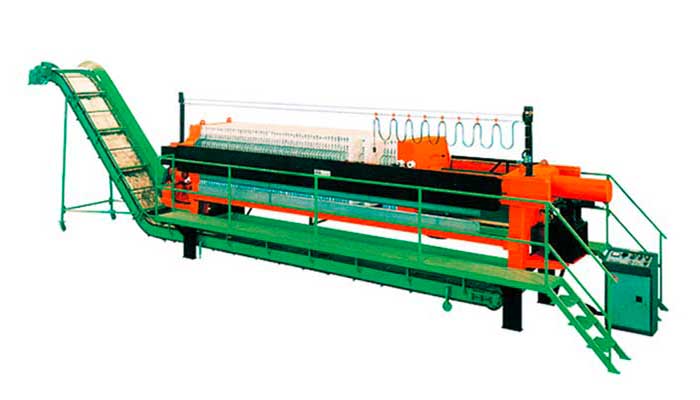

Semi-Automatic Filter Press F1000A

The F1000A filter press with automated "one at a time" movement of the plates supervised by the operator, is made up of the following main groups:

  • Find out more details

    • Electro-mechanical automation for moving the filter plates
    • Electro-welded carbon steel load-bearing frame with stainless steel cladding, treated with a sandblasting cycle, grey epoxy anti-rust primer, two coats of special epoxy or polyurethane paint
    • Motorized hydraulic control unit for closing and opening the filter, applied to the machine frame
    • Sludge feeding unit generally composed of volumetric pumps (e.g. twin-cylinder piston pump mod. GS 80/2P) to ensure constant filter filling and a maximum operating pressure of 15 bar
    • General control panel with PLC HMI panel and built-in end-of-filtration signal device
    • Side protection panels in anti-splash polycarbonate and operator protection with photoelectric barriers
    • 1000x1000 mm filter plates made of PPHD polypropylene
    • Series of polypropylene filter cloths
    • Drip-tray drip-collecting doors
    • System high pressure canvas washing with up-and-down washer
    • Membrane plate squeezing system with air or water

  • Accessories on request

    • Self-tipping container for collecting cakes
    • Metal raising structure compliant with ENPI standards
    • Conveyor belts or stainless steel screws for evacuating exhausted cakes
    • Additional lateral photoelectric barriers for operator protection
    • Pre-charging pump
    • Sludge pump control inverter with electronic transducer

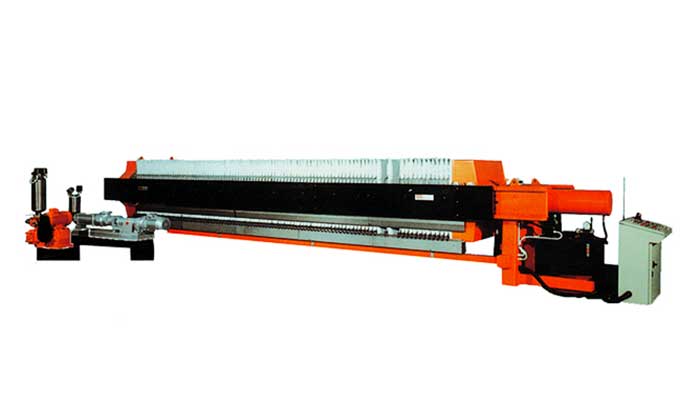

Semi-Automatic Filter Press F1200A

The F1200A filter press with automated "one at a time" movement of the plates supervised by the operator, is made up of the following main groups:

  • Find out more details

    • Electro-mechanical automation for moving the filter plates
    • Electro-welded carbon steel load-bearing frame with stainless steel cladding, treated with a sandblasting cycle, grey epoxy anti-rust primer, two coats of special epoxy or polyurethane paint
    • Motorized hydraulic control unit for managing the plate automation as well as the filter opening and closing control, applied to the machine frame
    • Sludge feeding unit generally composed of volumetric pumps (e.g. twin-cylinder piston pump mod. GS 80/2P) to ensure constant filter filling and a maximum operating pressure of 15 bar
    • General control panel with PLC HMI panel and built-in end-of-filter signal device
    • Side protection panels in anti-splash polycarbonate and operator protection with photoelectric barriers
    • 1200x1200 mm filter plates made of PPHD polypropylene
    • Series of polypropylene filter cloths
    • Doors drip-tray drip collector
    • High-pressure cloth washing system with up-and-down washer
    • Plate and membrane squeezing system with air or water

  • Accessories on request

    • Self-tipping container for collecting cakes
    • Metal raising structure compliant with ENPI standards
    • Conveyor belts or stainless steel screws for evacuating exhausted cakes
    • Additional lateral photoelectric barriers for operator protection
    • Pre-charging pump
    • Sludge pump control inverter with electronic transducer
